0.4 INCH (10mm) SINGLE DIGIT
 |
Download PDF File
|
 |

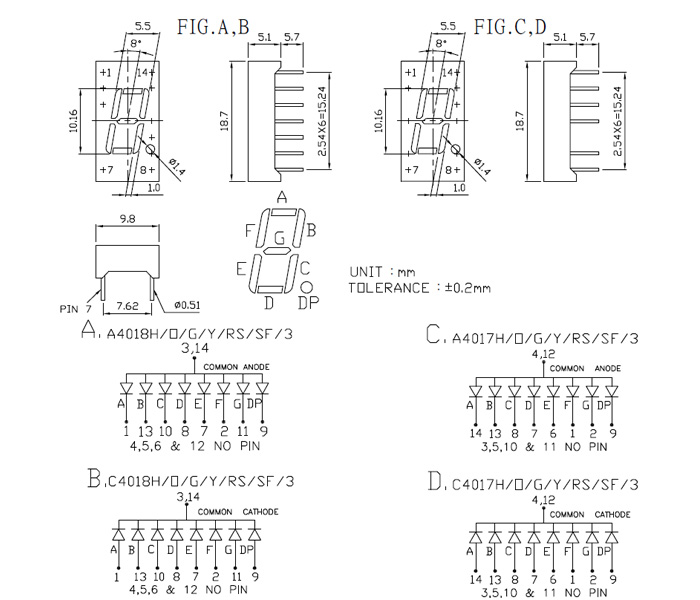

JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO.
|
MODEL NO.
|
MODEL NO.
|
MODEL NO.
|
MODEL NO.
|
MODEL NO.
|
(nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
A4018H | A4017H | 0 | C4017H | C4018H | 0 | 695 | 100 | 2.2 | 0.4mcd | ||||||||
GaAsP ORANGE RED |
A4018O | A4017O | 0 | C4017O | C4018O | 0 | 630 | 100 | 2.0 | 2.5mcd | ||||||||
GaP GREEN |
A4018G | A4017G | 0 | C4017G | C4018G | 0 | 570 | 100 | 2.2 | 4.5mcd | ||||||||
GaP YELLOW |
A4018Y | A4017Y | 0 | C4017Y | C4018Y | 0 | 600 | 100 | 2.2 | 2.5mcd | ||||||||
GaAlAs RED |
A4018RS | A4017RS | 0 | C4017RS | C4018RS | 0 | 650 | 100 | 1.8 | 3.0mcd | ||||||||
GaAlAs RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAlAs YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
A4018SF | A4017SF | 0 | C4017SF | C4018SF | 0 | 465±5 | 100 | 3.6 | 30mcd | ||||||||
ZnSe WHITE |
A40183 | A40173 | 0 | C40173 | C40183 | 0 | 485+ | 100 | 3.0 | 3.0mcd | ||||||||
 |
 |
| JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN |
