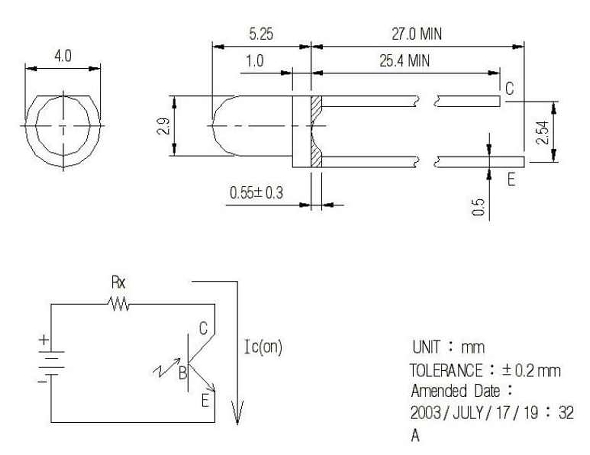

DIA 3mm PHOTOTRANSISTOR



JOINSCAN'S LED

MODEL NO.
LENS COLOR

ELECTRICAL ＆ OPTICAL CHARACTERISTIC
VIEW ANGLE 2θ 1/2
PEAK WAVE LENGTH
@IF=20mA
Absolute Max
Rating
Collector Dark Current
(lC(on))TYP
Collector Dark Current
(lceo)
≦15°
25°
≧35°
L302p1-940＜
 L302p1-940 L302p1-940＞ WATER TRANSPARENT
940nm
Ace=30V
Pd 100mW
Vce=5.0V
IC(ON)=3mA
Max 100nA
Ace=10V
L302p2-940＜
 L302p2-940 L302p2-940＞ BLACK TRANSPARENT
L302p3-940＜
 L302p3-940 L302p3-940＞ BLUE TRANSPARENT
L103T1-880＜
 L103T1-880 L302p1-880＞ WATER TRANSPARENT
880nm
Ace=30V
Pd 100mW
Vce=5.0V
IC(ON)=3mA
Max 100nA
Ace=10V
L302p2-880＜
 L302p2-880 L302p2-880＞ BLACK TRANSPARENT
L302p3-880＜
 L302p3-880 L302p3-880＞ BLUE TRANSPARENT
L103p1-850＜
 L103p1-850 L103p1-850＞ WATER TRANSPARENT
850nm
Ace=30V
Pd 100mW
Vce=5.0V
IC(ON)=3mA
Max 100nA
Ace=10V
L302p2-850＜
 L302p2-850 L302p2-850＞ BLACK TRANSPARENT
L302p3-850＜
 L302p3-850 L302p3-850＞ BLUE TRANSPARENT
