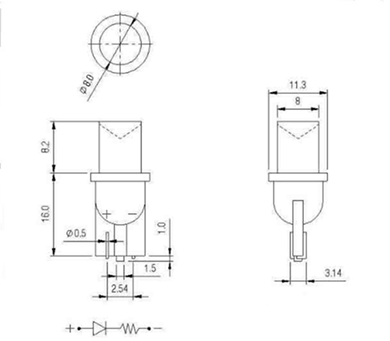

DlA 8.0mm WEDGE TYPE VlEW ANGLE LED INDICATOR
Download PDF File
|
JOINSCAN'S LED |
OPERATION Voltage |
COLOR |
WAVE LENGTH |
LUMINOUS INTENSITY |
VIEW ANGLE |
||||
3V |
6V |
12V |
158V |
24V |
||||
IW823ED -3 V |
IW823ED -6 V |
IW823ED -12 V |
IW823ED -15 V |
IW823ED -24 V |
LOW Cost Orange Red | 635nm |
25mcd |
60° |
IW823GD -3 V |
IW823GD- 6 V |
IW823GD- 12 V |
IW823GD- 15 V |
IW823GD- 24 V |
LOW Cost | 570nm |
20mcd |
60° |
IW823YD- 3 V |
IW823YD- 6 V |
IW823YD- 12 V |
IW823YD- 15 V |
IW823YD- 24 V |
LOW Cost | 590nm |
15mcd |
60° |
IW823UD- 3 V |
IW823UD- 6 V |
IW823UD- 12 V |
IW823UD- 15 V |
IW823UD- 24 V |
Vert Bright Red | 660nm |
500mcd |
60° |
IW823YCS- 3 V |
IW823YCS- 6 V |
IW823YCS- 12 V |
IW823YCS- 15 V |
IW823YCS- 24 V |
Bright Yellow | 500nm |
585mcd |
60° |
IW823GCS- 3 V |
IW823GCS- 6 V |
IW823GCS- 12 V |
IW823GCS- 15 V |
IW823GCS- 24 V |
Very Bright Green | 571nm |
150mcd |
60° |
JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN |
