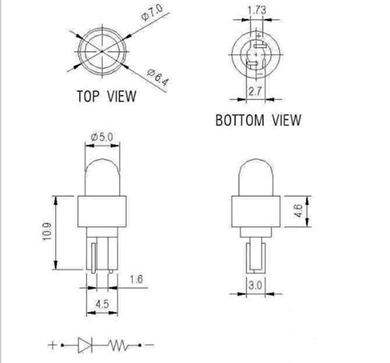

DlA 5.0mm WEDGE TYPE LED INDICATOR
Download PDF File
|
JOINSCAN'S LED |
OPERATION Voltage |
COLOR |
WAVE LENGTH |
LUMINOUS INTENSITY |
VIEW ANGLE |
||||
3V |
6V |
12V |
158V |
24V |
||||
IW503ED -3 V |
IW503ED -6 V |
IW503ED -12 V |
IW503ED -15 V |
IW503ED -24 V |
Low Cost Orange Red | 635nm |
25mcd |
60° |
IW503GD -3 V |
IW503GD- 6 V |
IW503GD- 12 V |
IW503GD- 15 V |
IW503GD- 24 V |
Low Cost | 570nm |
20mcd |
60° |
IW503YD- 3 V |
IW503YD- 6 V |
IW503YD- 12 V |
IW503YD- 15 V |
IW503YD- 24 V |
Low Cost | 590nm |
15mcd |
60° |
IW503UD- 3 V |
IW503UD- 6 V |
IW503UD- 12 V |
IW503UD- 15 V |
IW503UD- 24 V |
Very Bright Red | 660nm |
500mcd |
60° |
IW503YCS- 3 V |
IW503YCS- 6 V |
IW503YCS- 12 V |
IW503YCS-15 V |
IW503YCS- 24 V |
Bright Yellow | 500nm |
585mcd |
60° |
IW503GCS- 3 V |
IW503GCS- 6 V |
IW503GCS- 12 V |
IW503GCS- 15 V |
IW503GCS- 24 V |
Very Bright Green | 571nm |
150mcd |
60° |
JOINSCAN ELECTRONICS CO.,
LTD. TEL:886-2-2696-1188 FAX:886-2-2696-1098 5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN |
