TWO LED WITH HOLDER( LED DIA 4.7 mm VIEW LENS 3.7 mm COLOR DIFFUSION )
 |
Download PDF File
|
 |
JOINSCAN'S LED |
 |
COLORED DIFFUSION |
|
|
|
|
||||||||||||||
LED A |
LED B |

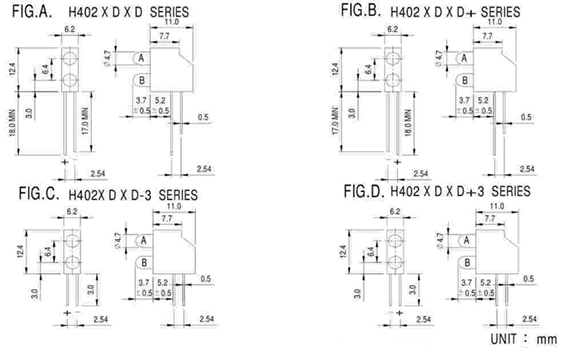

FIG.A. |
FIG.B.
|
FIG.C. |
FIG.D |
(nm) |
@VR=5V |
@IF=20mA |
IF=20mA |
||||||||||
RED |
RED |
H402HDHD | H402HDHD+ | H402HDHD-3 | H402HDHD+3 | 695 | 100 | 2.2V | 1.4~3.5 | ||||||||||
RED |
GREEN |
H402HDGD | H402HDGD+ | H402HDGD-3 | H402HDGD+3 | 695/570 | 100 | 2.2V | 1.4~3.5 | ||||||||||
RED |
YELLOW |
H402HDYD | H402HDYD+ | H402HDYD-3 | H402HDYD+3 | 695/600 | 100 | 2.2V/2.1V | 1.4~3.5 | ||||||||||
GREEN |
GREEN |
H402GDGD | H402GDGD+ | H402GDGD-3 | H402GDGD+3 | 570 | 100 | 2.2V | 5.0~12.5 | ||||||||||
GREEN |
RED |
H402GDHD | H402GDHD+ | H402GDHD-3 | H402GDHD+3 | 570/695 | 100 | 2.2V | 5.0~12.5 | ||||||||||
GREEN |
YELLOW |
H402GDYD | H402GDYD+ | H402GDYD-3 | H402GDYD+3 | 570/600 | 100 | 2.2V/2.1V | 5.0~12.5 | ||||||||||
YELLOW |
YELLOW |
H402YDYD | H402YDYD+ | H402YDYD-3 | H402YDYD+3 | 600 | 100 | 2.1V | 5.0~12.5 | ||||||||||
YELLOW |
RED |
H402YDHD | H402YDHD+ | H402YDHD-3 | H402YDHD+3 | 600/695 | 100 | 2.1V/2.2V | 5.0~12.5 | ||||||||||
YELLOW |
GREEN |
H402YDGD | H402YDGD+ | H402YDGD-3 | H402YDGD+3 | 600/570 | 100 | 2.1V/2.2V | 5.0~12.5 | ||||||||||
HI-EFF RED |
HI-EFF RED |
H402EDED | H402EDED+ | H402EDED-3 | H402EDED+3 | 635 | 100 | 1.8V | 5.0~12.5 | ||||||||||
HI-EFF RED |
GREEN |
H402EDGD | H402EDGD+ | H402EDGD-3 | H402EDGD+3 | 635/570 | 100 | 1.8V/2.2V | 5.0~12.5 | ||||||||||
HI-EFF RED |
YELLOW |
H402EDYD | H402EDYD+ | H402EDYD-3 | H402EDYD+3 | 635/600 | 100 | 1.8V/2.1V | 5.0~12.5 | ||||||||||
GREEN |
HI-EFF RED |
H402GDED | H402GDED+ | H402GDED-3 | H402GDED+3 | 570/635 | 100 | 2.2V/1.8V | 5.0~12.5 | ||||||||||
YELLOW |
HI-EFF RED |
H402YDED | H402YDED+ | H40YDED2-3 | H402YDED+3 | 600/635 | 100 | 2.1V/1.8V | 5.0~12.5 | ||||||||||
 |
 |
