THE H304X SERIES THREE LED WITH HOLDER

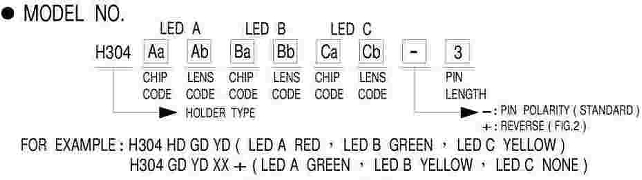

● LED 　Aa_______, LED Ba__________, LED Ca__________ CHP CODE
LED CHIP CODE EMITTED COLOR CHIP MATERIAL WAVE LENGTH lR MAX VR MAX @20mA VF TYP LUMINOUS INTENSITY VIEW ANGLE ESD LOW COST H STANDARD RED GaP 695nm 100µA 10V 2.2V 3.5mcd 60° 2000V G GREEN GaP 570nm±5 100µA 10V 2.2V 15mcd 60° 2000V Y YELLOW GaP 590nm 100µA 10V 2.1V 10mcd 60° 2000V O ORANGE GaP/GaAsP 630nm 100µA 10V 2.0V 10mcd 60° 2000V E HI-EFF RED GaP/GaAsP 635nm 100µA 10V 2.0V 10mcd 60° 2000V F BLUE SiC/GaN 430nm 100µA 10V 3.6V 10mcd 60° 1000V/400V FS BRIGHT BLUE SiC/GaN 430nm 100µA 10V 3.6V 15mcd 60° 1000V/400V SF SUPER BRIGHT BLUE SiC/InGaN 465nm±6 100µA 10V 3.4V 30mcd 60° 1000V/400V X NO LED
●LED 　Ab_______, LED Bb__________, LED Cb__________ LENS CODE
LENS CODE DESCRIPTION D COLORED DIFFUSION LENS T COLORED TRANSPARENCY LENS C WATER CLENS LENS M MILKY LENS X NO LED	COLORED DIFFUSION LED CHIP CODE FIG MODEL NO. LED1 LED2 LED3   H304 HD GD YD - 3 H G Y 1 H304 HD YD GD - 3 H Y G 1 H304 GD YD HD - 3 G Y H 1 H304 GD HD YD - 3 G H Y 1 H304 YD GD HD - 3 Y G H 1 H304 YD HD GD - 3 Y H G 1 H304 HD XX GD + 3 H X G 2 H304 YD GD XX + 3 Y G X 2
OLD MODEL NO. NEW MODEL NO. HYG H304 HD YD GD+ H304GG H304 GD GD XX H304G H304 GD XX XX

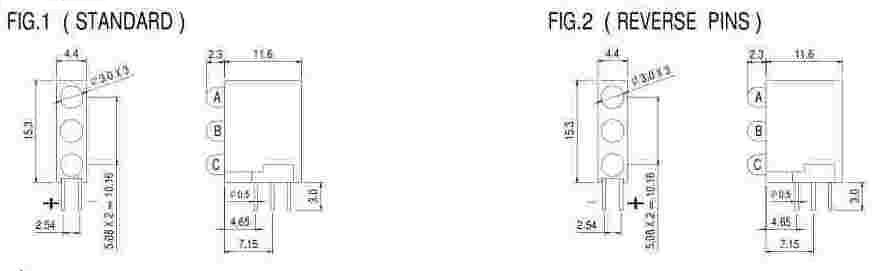

● LED 　PIN POLARITY
