3mm 90° DUAL LED WITH HOLDER
Download PDF File
|
JOINSCAN'S LED |
COLORED DIFFUSION |
|
|
|
|
|||||||||||||||
LED A |
LED B |

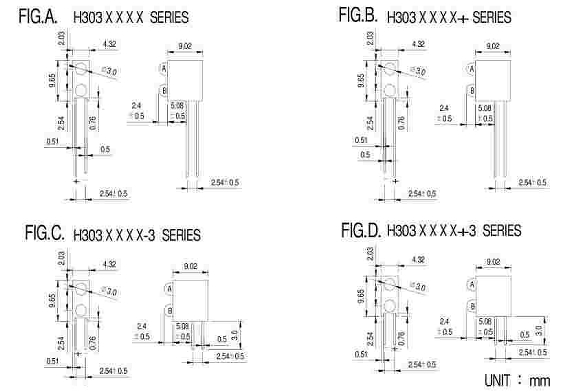

FIG.A. |
FIG.B. |
FIG.C. |
FIG.D |
(nm) |
@VR=5V |
@IF=20mA |
IF=20mA |
||||||||||
RED |
RED |
H303HXHX | H303HXHX+ | H303HXHX-3 | H303HXHX+3 | 695 | 100 | 2.2V | 1.4~3.5 | ||||||||||
RED |
GREEN |
H303HXGX | H303HXGX+ | H303HXGX-3 | H303HXGX+3 | 695/570 | 100 | 2.2V | 1.4~3.5/6.0~15 | ||||||||||
RED |
YELLOW |
H303HXYX | H303HXYX+ | H303HXYX-3 | H303HXYX+3 | 695/600 | 100 | 2.2V/2.1V | 1.4~3.5/5.0~12.5 | ||||||||||
GREEN |
GREEN |
H303GXGX | H303GXGX+ | H303GXGX-3 | H303GXGX+3 | 570 | 100 | 2.2V | 6.0~15 | ||||||||||
GREEN |
RED |
H303GXHX | H303GXHX+ | H303GXHX-3 | H303GXHX+3 | 570/695 | 100 | 2.2V | 6.0~15/1.4~3.5 | ||||||||||
GREEN |
YELLOW |
H303GXYX | H303GXYX+ | H303GXYX-3 | H303GXYX+3 | 570/600 | 100 | 2.2V/2.1V | 6.0~15/5.0~12.5 | ||||||||||
YELLOW |
YELLOW |
H303YXYX | H303YXYX+ | H303YXYX-3 | H303YXYX+3 | 600 | 100 | 2.1V | 5.0~12.5 | ||||||||||
YELLOW |
RED |
H303YXHX | H303YXHX+ | H303YXHX-3 | H303YXHX+3 | 600/695 | 100 | 2.1V/2.2V | 5.0~12.5/1.4~3.5 | ||||||||||
YELLOW |
GREEN |
H303YXGX | H303YXGX+ | H303YXGX-3 | H303YXGX+3 | 600/570 | 100 | 2.1V/2.2V | 5.0~12.5/6.0~15 |
