SINGLE LED WITH HOLDER(LED DIA 3.0mm VIEW LENS 2.3 mm COLORED DIFFUSION/ COLORED TRANSPARENCY)
 |
 |
 |
JOINSCAN'S LED |

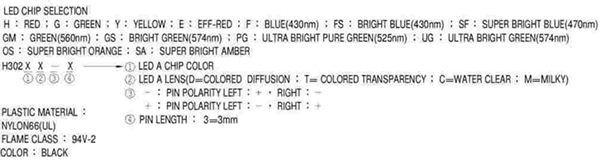

| LED EMITTING COLOR | COLORED DIFFUSION LEDS MODEL NO. |
|
|
|
|
|||||||||||

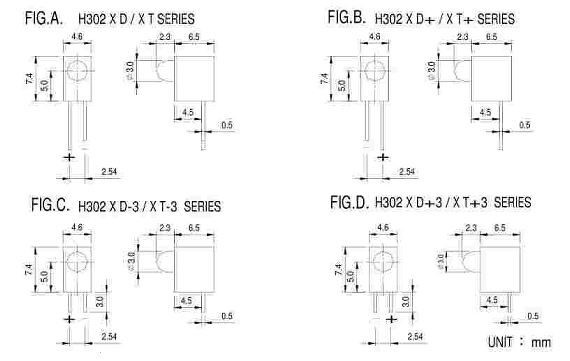

FIG.A. |
FIG.B. |
FIG.C. |
FIG.D |
|||||||||||||
RED |
H302HD |
H402HDHD+ |
H402HDHD-3 |
H402HDHD+3 |
(nm) |
@VR=5V |
@IF=20mA |
IF=20mA |
||||||||
HI-EFF RED |
H302HD | H302HD+ | H302HD-3 | H302HD+3 | 695 |
100 |
2.2V |
1.4~3.5 |
||||||||
RED |
H302ED | H302ED+ | H302ED-3 | H302ED+3 | 635 |
100 |
1.8V |
5.0~12.5 |
||||||||
ORANGE |
H302OD | H302OD+ | H302OD-3 | H302OD+3 | 630 |
100 |
2.0V |
1.4~3.5 |
||||||||
YELLOW |
H302YD | H302YD+ | H302YD-3 | H302YD+3 | 600 |
100 |
2.1V |
5.0~12.5 |
||||||||
GREEN |
H302GD | H302GD+ | H302GD-3 | H302GD+3 | 570 |
100 |
2.2V |
5.0~12.5 |
||||||||
BLUE |
H302SFD | H302SFD+ | H302SFD-3 | H302SFD+3 | 470 |
100 |
3.6V |
5.0~12.5 |
||||||||
| LED EMITING COLOR | COLORED TRANSPARENCY LEDS MODEL NO. |
|
|
|
|
|||||||||||
RED |
H302HT | H302HT+ | H302HT-3 | H302HT+3 | 695 |
100 |
2.2V |
1.4~3.5 |
||||||||
HI-EFF RED |
H302ET | H302ET+ | H302ET-3 | H302ET+3 | 635 |
100 |
1.8V |
5.0~12.5 |
||||||||
ORANGE |
H302OT | H302OT+ | H302OT-3 | H302OT+3 | 630 |
100 |
2.0V |
1.4~3.5 |
||||||||
YELLOW |
H302YT | H302YT+ | H302YT-3 | H302YT+3 | 600 |
100 |
2.1V |
5.0~12.5 |
||||||||
GREEN |
H302GT | H302GT+ | H302GT-3 | H302GT+3 | 570 |
100 |
2.2V |
5.0~12.5 |
||||||||
BLUE |
H302SFT | H302SFT+ | H302SFT-3 | H302SFT+3 | 470 |
100 |
3.6V |
5.0~12.5 |
||||||||
 |
 |
