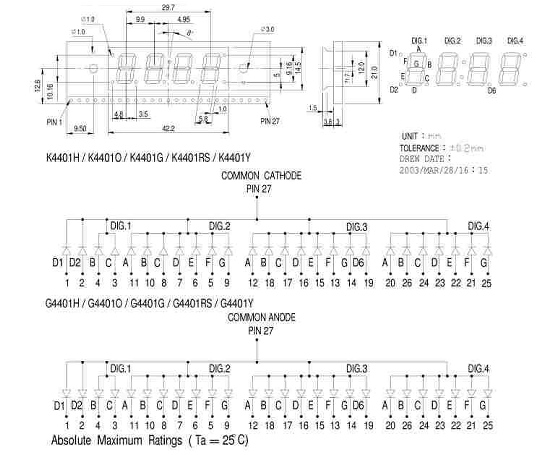

0.4 INCH CLOCK G4401/ K4401 SERIES
Download PDF File
|
JOINSCAN'S LED |
PARAMETER | SYMBOL | G/K 44010 ORANGE RED | G/K 44010 RED | G/K 4401G YELLOW GREEN |
G/K 4401Y YELLOW /AMBER | G/K 4401RS SUPERBRIGHT RED |
UNITS |
Power Dissipation Per Dice |
P AD | 70 | 40 | 70 | 70 | 100 | mW |
Derating Linear From 25° C Per Dice |
0 | 0.27 | 0.20 | 0.27 | 0.27 | 0.50 | mA/°C |
Continuous Forward Current Per Dice |
1 AF | 25 | 15 | 25 | 20 | 30 | mA |
Peak Forward Current Per Dice (Duty CycIe 1/10 , 10KHZ) |
1 FF | 90 | 60 | 90 | 90 | 200 | mA |
Reverse Voltage Per Dice |
V R | 5 | 5 | 5 | 5 | 5 | V |
Operating Temperature |
T opr | -25°C to +85°C |
|||||
Storage Temprature |
T opr | -25°C to +85°C |
|||||
Solder Temperature 1/16 Inch Below Seating for 5 Seconds at 230° C |
