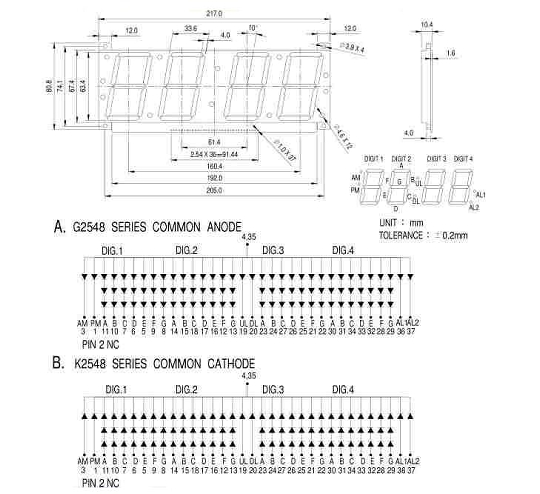

2.5 INCH CLOCK DISPLAY (24 HOURS)
 |
Download PDF File
|
 |
JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
0 | 0 | 0 | 0 | 0 | 695 | 100 | 2.2 | 0.6MCD | |||||||||
GaAsP ORANGE RED |
G2548O | 0 | 0 | K2548O | 0 | 0 | 635 | 100 | 2.0 | 4.0MCD | ||||||||
GaP GREEN |
G2548G | 0 | 0 | K2548G | 0 | 0 | 570 | 100 | 2.2 | 4.5MCD | ||||||||
GaP YELLOW |
0 | 0 | 0 | 0 | 0 | 600 | 100 | 2.2 | 4.0MCD | |||||||||
GaAIAs RED |
G2548RS | 0 | 00 | K2548RS | 0 | 0 | 650 | 100 | 1.8 | 8.0MCD | ||||||||
GaAIAs RED |
G2548UR | 0 | 0 | K2548UR | 0 | 0 | 600 | 100 | 2.0 | 15MCD | ||||||||
GaAIAs YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
G2548SF | 0 | 0 | K2548SF | 0 | 0 | 465±5 | 100 | 3.6 | 30MCD | ||||||||
ZnSe WHITE |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 100 | 3.0 | 2.0MCD | ||||||||
 |
 |
