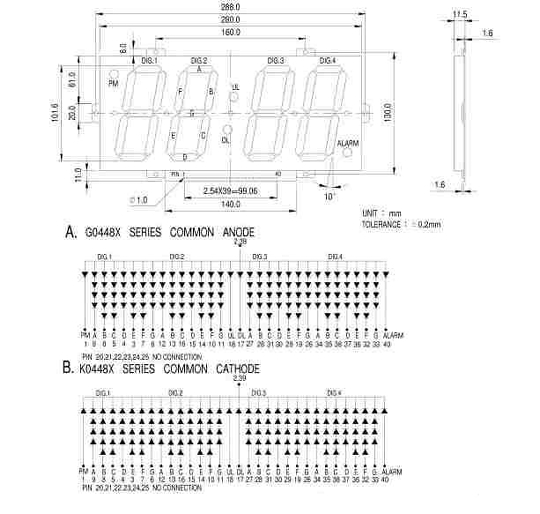

4.0 INCH CLOCK DISPLAY (24 HOURS)
Download PDF File
|
JOINSCAN'S LED |
PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) |
VR=5V |
IF=20mA |
IF=20mA |
||||||||
GaP RED |
0 | 0 | 0 | 0 | 0 | 0 | 695 | 100 | 2.2 | 0.6mcd | ||||||||
GaAsP ORANGE RED |
0 | 0 | 0 | 0 | 0 | 0 | 635 | 100 | 2.0 | 4.0mcd | ||||||||
GaP GREEN |
G0448GS | 0 | 0 | K0448GS | 0 | 0 | 570 | 100 | 2.2 | 4.5mcd | ||||||||
GaP YELLOW |
G0448SY | 0 | K0448SY | 0 | 0 | 600 | 100 | 2.2 | 4.0mcd | |||||||||
GaAIAs RED |
G0448UR | 0 | 00 | K0448UR | 0 | 0 | 650 | 100 | 1.8 | 8.0mcd | ||||||||
GaAIAs RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAs YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
G0448FS | 0 | 0 | K0448FS | 0 | 0 | 470 | 100 | 3.6 | 30mcd | ||||||||
ZnSe WHITE |
G0448SF | 0 | 0 | K0448SF | 0 | 0 | 0 | 100 | 3.0 | 2.0mcd |
