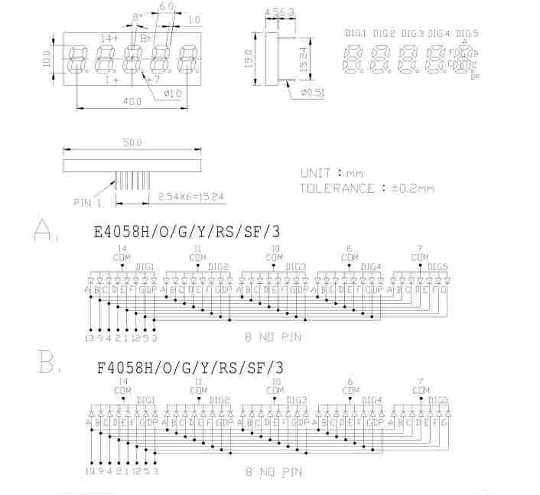

0.4 INCH FIVE DIGIT SERIES
 |
Download PDF File
|
 |
JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE |
COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
model no. | model no. | model no. | model no. | model no. | model no. | (mm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
E4058H | 0 | 0 | F4058H | 0 | 0 | 695 | 100 | 2.2 | 0.6mcd | ||||||||
GaAsP ORANGE RED |
E4058O | 0 | 0 | F4058O | 0 | 0 | 635 | 100 | 2.0 | 4.0mcd | ||||||||
GaP GREEN |
E4058G | 0 | 0 | F4058G | 0 | 0 | 570 | 100 | 2.2 | 4.5mcd | ||||||||
GaP YELLOW |
E4058Y | 0 | F4058Y | 0 | 0 | 600 | 100 | 2.2 | 4.0mcd | |||||||||
GaAIAs RED |
E4058RS | 0 | 00 | F4058RS | 0 | 0 | 650 | 100 | 1.8 | 8.0mcd | ||||||||
GaAIAs RED |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAs YELLOW GREEN |
0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
E4058FS | 0 | 0 | F4058FS | 0 | 0 | 465±5 | 100 | 3.6 | 30mcd | ||||||||
ZnSe WHITE |
E40583 | 0 | 0 | F40583 | 0 | 0 | 485+ | 100 | 3.0 | 2.0mcd | ||||||||
 |
 |
