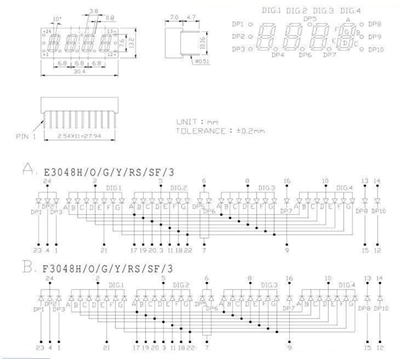

0.30" QUAD DIGIT
 |
Download PDF File
|
 |
JOINSCAN'S LED |
| PIN FUNCTION | COMMON ANODE | COMMON CATHODE |
|
|
|
|
||||||||||||
A |
C |
E |
B |
D |
F |
|||||||||||||
EMITTING COLOR |
MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | MODEL NO. | (nm) | VR=5V | IF=20mA | IF=20mA | ||||||||
GaP RED |
A334CH | 0 | 0 | C334CH | 0 | 0 | 695 | 100 | 2.2 | 0.6mcd | ||||||||
GaAsP ORANGE RED |
A334CO | 0 |
0 | C334CO | 0 | 0 | 635 | 100 | 2.0 | 4.0mcd | ||||||||
GaP GREEN |
A334CG | 0 | 0 | C334CG | 0 | 0 | 570 | 100 | 2.2 | 4.5mcd | ||||||||
GaP YELLOW |
A334CY | 0 | C334CY | 00 | 0 | 600 | 100 | 2.2 | 4.0mcd | |||||||||
GaAIAs RED |
A334CRS | 0 | 00 | C334CRS | 0 | 0 | 650 | 100 | 1.8 | 8.0mcd | ||||||||
GaAIAs RED |
0 | 00 | 0 | 0 | 00 | 0 | 0 | 0 | 0 | 0 | ||||||||
GaAIAs YELLOW GREEN |
0 | 00 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||
SiC BLUE |
A334CF | 0 | 0 | C334CF | 0 | 0 | 430 | 100 | 3.6 | 2.0mcd | ||||||||
ZnSe WHITE |
A334C3 | 0 | 0 | C334C3 | 0 | 0 | 485+ | 100 | 3.0 | 2.0mcd | ||||||||
 |
 |
