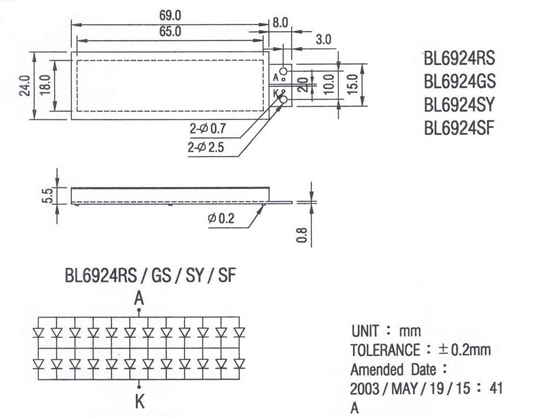

69.0 X 24.0mm BACK LIGHT
BL6924 SERIES
EMITTING COLOR
RED
GREEN
YELLOW
BLUE
MODEL NO.
BL6924RS
BL6924GS
BL6924SY
BL6924SF
DICE
GaALAs
GaP
AlGalnP
SiC
ABSOLUTE MAXIMUM RATINGS
TA = 25° C
PARAMETER
SYMBOL
RATING
UNIT
RED
GREEN
YELLOW
BLUE
POWER DISSIPATION
P AD
0.84
1.056
0.96
0.65
W
CONTINUOUS FORWARD CURRENT
I AF
300
240
180
180
mA
REVERSE VOLTAGE
V R
8.0
8.0
8.0
8.0
V
OPERATING TEMPERATURE
T OPR
-10°C TO + 160° C
STORAGE TEMPERATURE
T STG
-20° C TO + 70 ° C
ELECTRO -OPTICAL CHARACTERISTICS
TA = 25° C
PARAMETER
SYMBOL
CONDITION
TYPE
UNIT
RED
GREEN
YELLOW
BLUE
FORWARD VOLTAGE
V F
I F=120 mA
3.5
4.4
4.0
7.2
V
LUMINOUS INTENSITY (SURFACE)
I V
I F=120 mA
2.8/240
2.8/240
2.8/240
2.8/240
mcd / LUX
PEAK EMISSION WAVELENGTH
λ
P
I F=120 mA
655
573
590
465±5
mm
REVERSE CURRENT
I R
V R = 8 V
MAX 0.6
MAX 0.6
MAX 0.6
MAX 0.6
mA
