BL3021 SERIES LED BACKLIGHT SOURCE

MODEL NO.
EMITTING COLOR
VF
λ P
typ
(nm)
λ P
typ
(nm)
I V

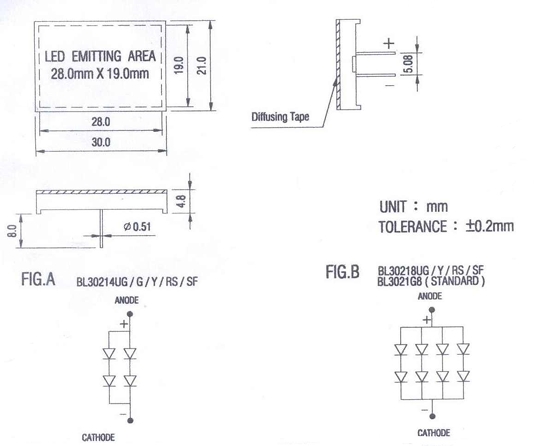

FIG.A
FIG.B
IF/CHIP (mA)

typ (V)

max
(v)
I F
(mA)
typ(mcd)
FIG.A
FIG.B
BL30214UG
BL30218UG
Super Bright Green
30
4.6
4.8
574
20
20/Chip
2.5/20mm2 5.0/20mm2
BL30214G
BL3021G8
Green
30
4.3
4.5
573
30
20/Chip
0.75/20mm2 1.5/20mm2
BL30214Y
BL30218Y
Yellow
30
4.4
4.7
590
40
20/Chip
1.0/20mm2 2.0/20mm2
BL30214RS
BL30218RS
Red
30
4.0
4.4
650
40
20/Chip
1.5/20mm2 3.0/20mm2
BL30214SF
BL30218SF
Super Bright Blue
30
6.8
7.2
465±6
40
20/Chip
1.5/20mm2 3.0/20mm2
