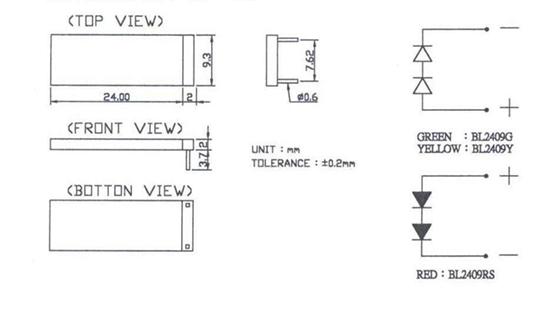

BL2409 SERIES
ABSOLUTE MAXIMUM RATINGS
1.Test Condition For Each Parameter
Parameter
Symbol
Unit
Test Condition
Reverse Voltage
V R
V
0
Reverse Current
I R
uA
VR=5 .0Volt
Forward Voltage
VF
V
I F=10mA
Luminous Intensity
I V
mcd
I F=20mA
Viewing Angle
2θ 1/2
Degree
I F=20mA
Spectral Line Half-Width
△ λ
nm
I F=20mA
Power Dissipation
PD
mW
I F=20mA
Peak Forward Current(Duty 1/10 1KHZ)
I F (Peak)
mA
I F (Peak) =120mA
2.Absolute Maximum Ratings : ( Ta=25°C )
Reverse Voltage
5.0Volt
Reverse Current (VR=5 V)
≦100uA
Operating Temperature Range
-40°C ~+80°C
Storage Temperature Range
-40°C ~+85°C

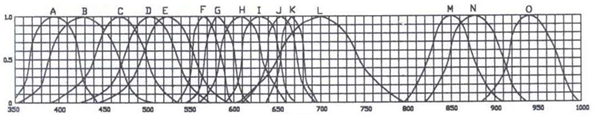

TYPICAL ELECTRICAL-OPTICAL CHARACTERISTICS
A:GaN ,SiC / 400nm / UVA
I:GaAsP/GaP 635nm/Orange ＆ Hi-Eff Red
B:GaN , SiC / 430nm / Blue
J:GaAsP/GaAs 655nm/Red
C:InGaN , SiC / 470nm / Blue
H:GaAlAs/GaAs 660nm/Super Red
D:InGaN , SiC / 505nm / Ultra Green
L:GaP 700nm/Bright Red
E:InGaAl , SiC / 525nm / Ultra Green
M:GaAlAs 850nm
F:GaP / 568nm / Yellow Green
N:GaAlAs 880nm
G:GaP, GaP /568nm / Yellow
O:GaAs/GaAs ＆ GaAlAs/GaAs 940nm
H:GaAsP, GaP / 610nm / Super Yellow
