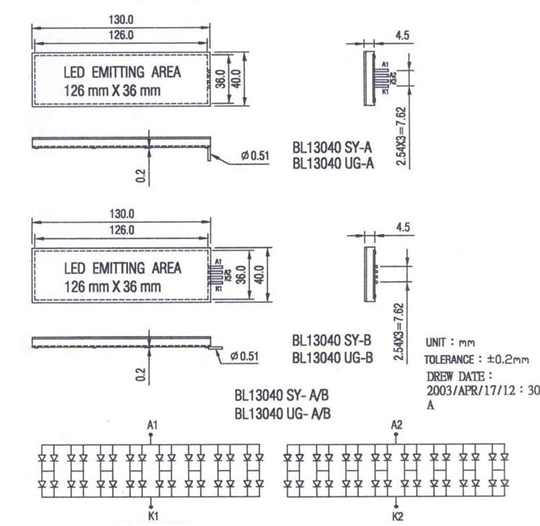

BL13040 SERIES LED BACKLIGHT SOURCE
BL13040 SERIES
EMITTING COLOR
YELLOW
GREEN
MODEL NO.
BL13040 SY -A/B
BL13040 UG - A/B
DICE
AIGalnP
AIGalnP
ABSOLUTE MAXIMUM RATINGS
TA = 25° C
PARAMETER
SYMBOL
RATING
UNIT
POWER DISSIPATION
P AD
2.16
2.21
W
CONTINUOUS FORWARD CURRENT
I AF
480
480
mA
REVERSE VOLTAGE
V R
8.0
8.0
V
OPERATING TEMPERATURE
T OPR
-10°C TO + 160° C
STORAGE TEMPERATURE
T STG
-20° C TO + 70 ° C
ELECTRO -OPTICAL CHARACTERISTICS
TA = 25° C
PARAMETER
SYMBOL
CONDITION
TYPE
UNIT
YELLOW
GREEN
FORWARD VOLTAGE
V F
I F=120 mA
4.1
4.2
V
LUMINOUS INTENSITY (SURFACE)
I V
I F=120 mA
400
800
CD/m
2
PEAK EMISSION WAVELENGTH
λ
P
I F=120 mA
590
570
nm
REVERSE CURRENT
I R
V R = 8 V
MAX 0.2
MAX 0.2
mA
