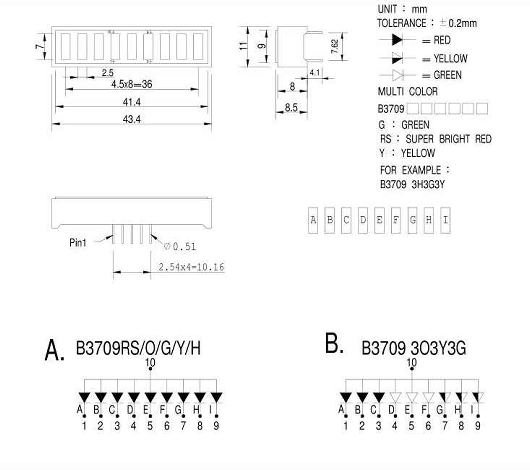

2.5mm X7 mm LIGHT BAR 9 SEGMENT
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
model no.
(mm)
VR=5V
IF=20mA
IF=10mA
GaAIAs RED
B3709RS
655nm
100µA
1.7V
6570ucd
GaP RED
B3709H
695nm
100µA
2.3V
1000ucd
GaP GREEN
B3709G
B37093O3Y3G
565nm
100µA
2.3V
2000ucd
GaAsP/GaP YELLOW
B3709Y
600nm
100µA
2.1V
2000ucd
GaAsP/GaP ORANGE
B3709O
635nm
100µA
2.0V
2000ucd
