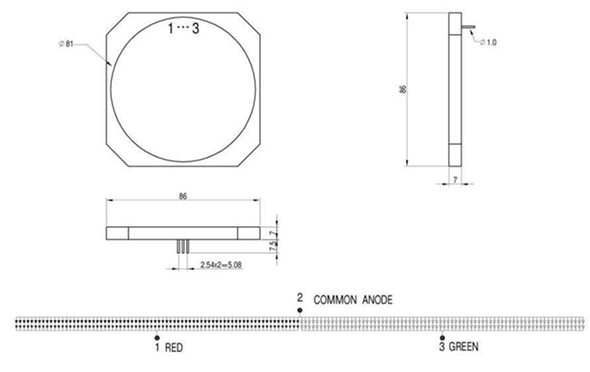

INCH 86X 86 mm LED BACK LIGHT SOURCE

BL8686 SERIES EMITTING COLOR RED GREEN PART NO. BL8686RS BL8686GS DICE GaALAs GaP ABSOLUTE MAXIMUM RATINGS TA = 25° C PARAMETER SYMBOL RATING UNIT RED GREEN POWER DISSIPATION P　 AD 7.2 8.14 W CONTINUOUS FORWARD CURRENT I 　AF 2 1.85 A REVERSE VOLTAGE V　 R 5.0 5.0 V OPERATING TEMPERATURE T 　OPR -10°C TO + 85 ° C STORAGE TEMPERATURE T　 STG -20° C TO + 70 ° C ELECTRO -OPTICAL CHARACTERISTICS TA = 25° C PARAMETER SYMBOL CONDITION TYPE UNIT RED GREEN FORWARD VOLTAGE V　 F I F=1.48 A 3.6 4.4 V LUMINOUS INTENSITY (SURFACE) I　 V I F=1.48 A 917 509 mcd / LUX PEAK EMISSION WAVELENGTH λ　 P I F=1.48 A 655 570 mm REVERSE CURRENT I　 R V R = 5 V MAX 7.4 MAX 7.4 mA
