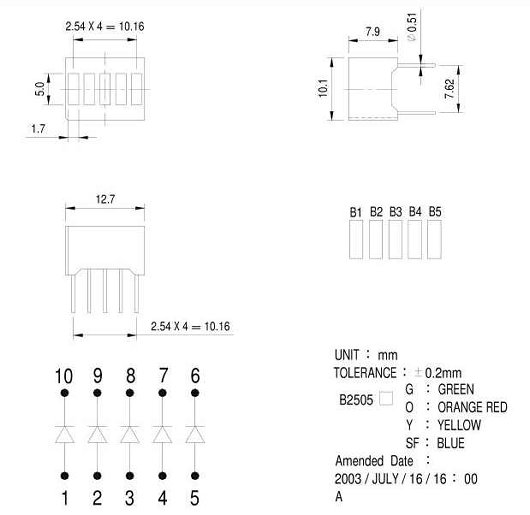

2.54 mm X 5mm LIGHT BAR 5 SEGMENT
MODEL NO.
WAVE
LENGTH
@VR=5V
@IF=20mA
MAX FORWARD
EMITTING
COLOR
REMARK
IR MAX
VF
LUMINOUS
INTENSITY
CURRENT PERCHIP
@25° C
B2505RS
650mm
100µA
1.8V
5mcd
30mA
RED
B2505G
570mm
100µA
2.2V
4mcd
25mA
GREEN
B2505Y
590mm
100µA
2.2V
4mcd
25mA
YELLOW
B2505
0
100µA
2.2V
4mcd
25mA
MULTI COLOR
B2505SF
465mm± 5
100µA
3.4V
30mcd
25mA
BLUE
