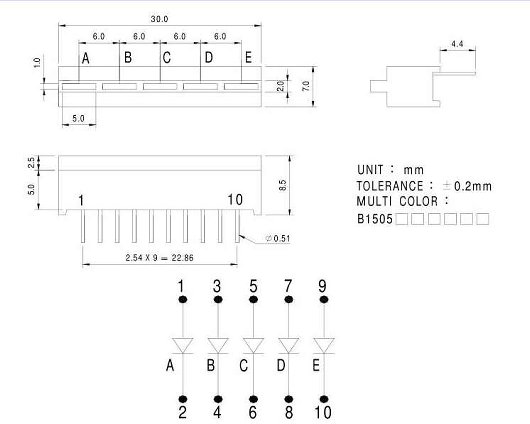

5.0mm X 1.0mm LIGHT BAR 5 SEGMENT

MODEL NO.
WAVE
LENGTH
@VR=5V
@IF=20mA
MAX FORWARD
EMITTING COLOR
REMARK
IR MAX
VF
LUMINOUS
INTENSITY
CURRENT PERCHIP
@25°C
B1505RS
650nm
100µA
1.8V
5.0mcd 30mA
RED

B1505G
570nm
100µA
2.2V
4.0mcd 25mA
GREEN

B1505Y
590nm
100µA
2.2V
4.0mcd 25mA
YELLOW

B1505H
695nm
100µA
2.3V
1.0mcd 25mA
RED

B1505O
630nm
100µA
2.0V
2.0mcd 25mA
ORANGE RED
