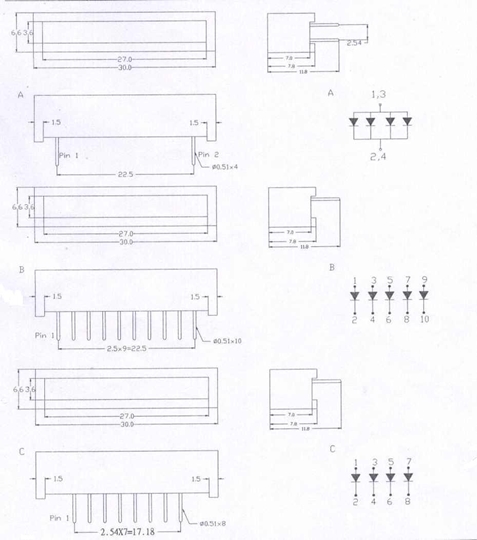

LIGHT BAR 30X6.6X7.8mm (VIEW AREA 27X3.6mm)

PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING  COLOR
model no.
model no.
model no.
model no.
IF=20mA
VR=5V
IF=20mA
IF=10mA
GaAsP RED
B3004R       655nm 100 1.7V 570ucd
GaP  RED
        695nm 100 2.3V 1000ucd
GaAsP/GaP ORANGE
B3004O B3005O B300O   635nm 100 2.0V 2000ucd
GaAsP/GaP  YELLOW
B3004Y B3005Y B3006Y   600nm 100 2.1V 2000ucd
GaP  GREEN
B3004G B3005G B3006G   565nm 100 2.3V 2000ucd
GaP  PURE GREEN
        555nm 100 2.3V 1000ucd
GaAIAs RED
B3004S B3005S B3006S   655nm 100 1.8V 5000ucd
