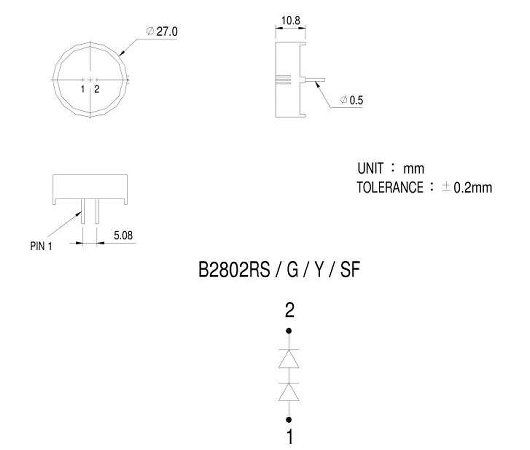

DIA 27.0 LIGHT BAR ROUND TYPE
MODEL NO.
EMITTING COLOR
WAVE
LENGTH
IR MAX
(µA)
VF
(V)
LUMINOUS
INTENSITY
(nm)
@VR=5V
@IF=20mA
@IF=10mA
B2802RS
GaAIAs SUPER BRIGHT RED
660nm
100µA
1.8V
5.0mcd
B2802G
GaP GREEN
565nm
100µA
2.3V
4.5mcd
B2802Y
GaAsP/GaP YELLOW
600nm
100µA
2.1V
2.5mcd
B2802SF
SiC BLUE
465±5nm
100µA
2.1V
30.0mcd
JOINSCAN ELECTRONICS CO., LTD.
TEL:
886-2-2696-1188
FAX:
886-2-2696-1098
5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN
