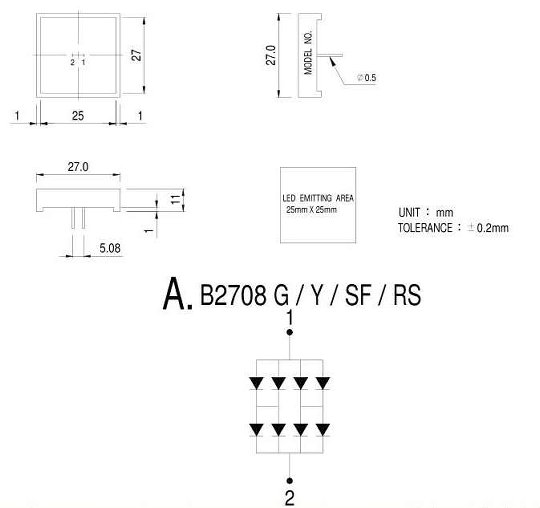

B2708 SERIES 27mmX27mm SINGLE COLOR

PIN FUNCTION
A
B
C
D
E
F
WAVE
LENGTH
IR　MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING　 COLOR model no. model no. model no. model no. model no. model no. (nm) VR=5V IF=20mA IF=20mA
GaP　RED
             695 100 202 0.4mcd
GaAsP　ORANGE RED
             630 100 2.0 2.5mcd
GaP　GREEN
 B2708CA           570 100 2.2 4.5mcd
GaP　　YELLOW
 B2708Y           600 100 2.2 2.5mcd
GaAIAs　　RED
 B2708RS           660 100   3.0mcd
GaAIAs　RED
             0 0 0 0
GaAIAs YELLOW GREEN
             0 0 0 0
SiC　BLUE
 B2708SF           466± 5 100 3.6 30mcd
ZnSe　WHITE
             485+ 100 3.0 2.5mcd
