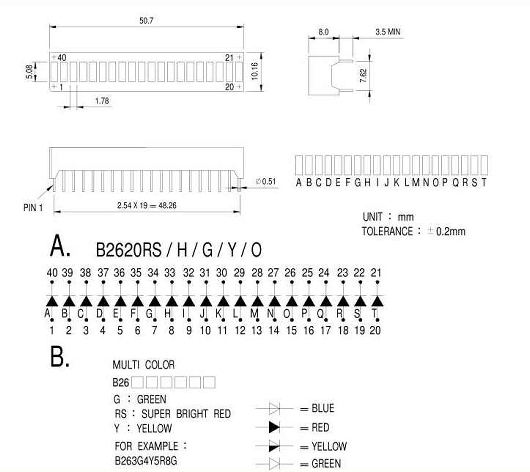

1.78mm X 5.08mm LIGHT BAR 20 SEGMENT

PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING  COLOR
model no.
model no.
model no.
model no.
IF=20mA
VR=5V
IF=20mA
IF=10mA
GaAIAs  RED
B2620RS       655nm 100µA 1.7V
6570ucd

GaP RED

B2620H       695nm 100µA 2.3V
1000ucd
GaP GREEN
B2620G



    565nm 100µA 2.3V
2000ucd
GaAsP/GaP  YELLOW
B2620Y       600nm 100µA 2.1V
2000ucd
GaAsP/GaP ORANGE
B2620O

635nm

100µA 2.0V
2000ucd
