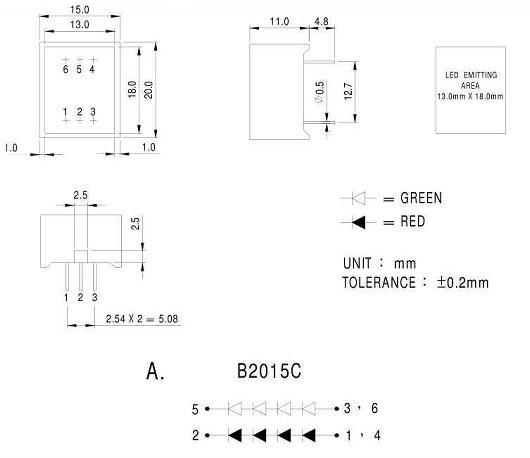

20.0mm X 15.0mm LIGHT BAR DUAL COLOR
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
COMMON ANODE
COMMON CATHODE
IF=20mA
VR=5V
IF=20mA
IF=10mA
GaAsP/GaP ORANGE
B2015C
B2015O
635nm
100µA
8.0V
10.0UCD
GaP GREEN
B2015G
565nm
100µA
8.8V
10.0UCD
GaAsP/GaP YELLOW
B2015Y
600nm
100µA
8.4V
10.0UCD
GaAIAs RED
B2015RS
600nm
100µA
7.2V
10.0UCD
