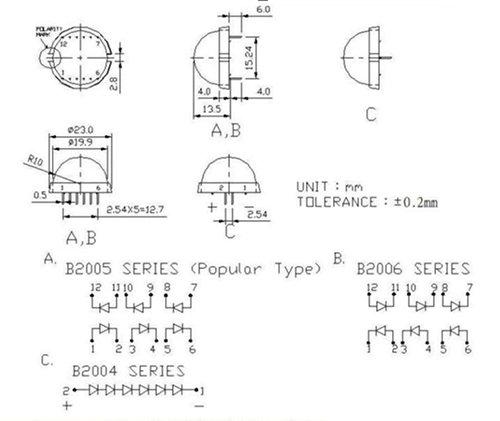

20.0mm Round Type BIG LED LAMP (12 pins)

PIN FUNCTION
COMMON ANODE
COMMON CATHODE
Wave Length
IRmax
{uA}
VF
(V)
LUMINOUS INTENSITY
IA
B
C
A
B
C
EMITTING COLOR
MODEL NO
MODEL NO
MODEL MNO
MODEL NO
MODEL NO
MODEL NO
(nm) VR=5V IF=20mA IF=20mA
GaP RED
GaAsP ORANGE RED
B2005ED/M B2006ED/M B2004ED/M B2005ET/M B2006ET/M B2004ET/M 635 100 20 4/10MCD
GaP GREEN
B2005GD/M B2006GD/M B2004GD/M B2005GT/M B2006GT/M B2004GT/M 570 100 22 4.5/11MCD
GaP YELLOW
B2005YD/M B2006YD/M B2004YD/M B2005YT/M B2006YT/M B2004YT/M 600 100 2.0 4/10MCD
GaAIAS RED
B2005SD/M B2006SD/M B2004SD/M B2005ST/M B2006ST/M B2004ST/M 650 100 1.8 8/20MCD
GaAIAS RED
B2005URD/M B2006URD/M B2004URD/M B2005URT/M B2006URT/M B2004URT/M 645 100 2.0 30/100MCD
GaAIAS YELLOW GREEN
B2005UGD/M B2006UGD/M B2004UGD/M B2005UGT/M B2006UGT/M B2004UGT/M 573 100 22 30/100MCD
SiC BLUE
B2005FSD/M B2006FSD/M B2004FSD/M B2005FST/M B2006FST/M B2004FST/M 470 100 3.6 15/40MCD
ZnSe WHITE
B20053SM B20063SM B20043SM B20053SC B20063SC B20043SC 470/590 100 3.6 15/40MCD
