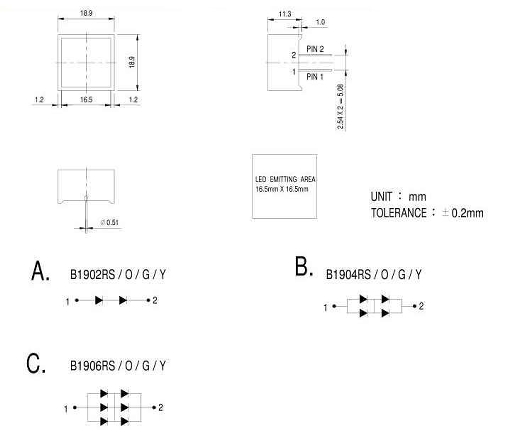

19X19 INCH LIGHT BAR SINGLE COLOR WITH 2 CHIPs SERIES
PIN FUNCTION
A
B
C
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
(nm)
VR=5V
IF=20mA
IF=10mA
GaAsP/GaP ORANGE
B1902OS
B1904OS
B1906OS
635
100
2.0/CHIP
10mcd
GaAsP/GaP YELLOW
B1902YS
B1904YS
B1906YS
600
100
2.1/CHIP
10mcd
GaP GREEN
B1902GS
B1904GS
B1906GS
565
100
2.2/CHIP
10mcd
GaAlAs RED
B1902RS
B1904RS
B1906RS
565
100
1.8/CHIP
10mcd
SiC BLUE
B1902SF
B1904SF
B1906SF
465±5
100
3.6/CHIP
30.0mcd
SiC PURE GREEN
B1902GP
B1904GP
B1906GP
525
100
3.6/CHIP
30.0mcd
GaAlInP ULTRA RED
B1902UR
B1904UR
B1906UR
640
100
2.0/CHIP
20mcd
