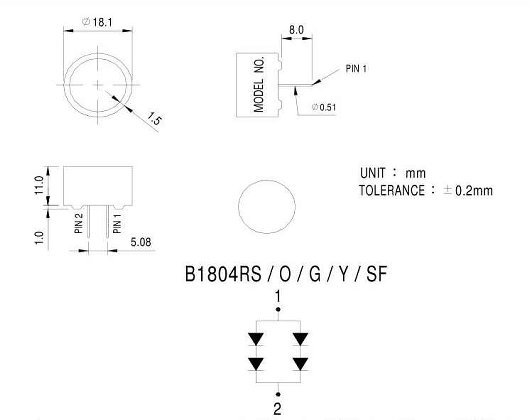

DIA 18.0mm ROUND TYPE LIGHT BAR

MODEL NO.
EMITTING COLOR
WAVE
LENGTH
IR MAX
µA
VF
(V)
LUMINOUS
INTENSITY
(nm)
@VR=5V
@IF=20mA
@IF=10mA
B1804RS
GaAIAs SUPER BRIGHT RED
660nm
100µA
3.6V
5.0mcd
B1804O
GaAsP/GaP  ORANGE
635nm
100µA
4.0V
2.5mcd
B1804G
GaP  GREEN
565nm
100µA
4.4V
4.5mcd
B1804Y
GaAsP/GaP YELLOW
600nm
100µA
4.2V
2.5mcd
B1804SF
SiC   BLUE
465±5nm
100µA
7.2V
30.0mcd
