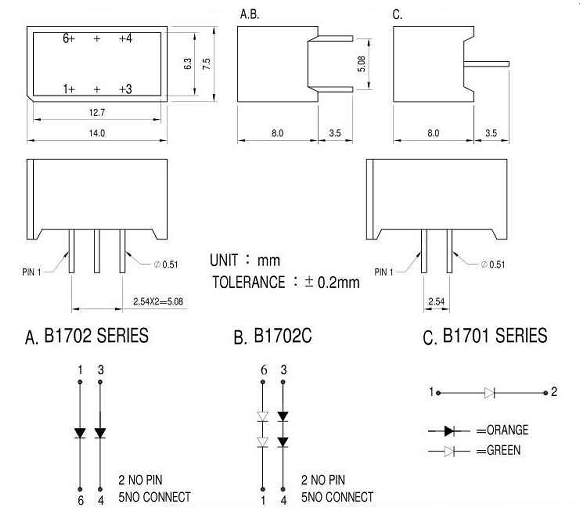

14X7.5 LIGHT BAR (B1702 AND B1701 SERIES)
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
model no.
(nm)
VR=5V
IF=20mA
IF=10mA
GaAIAs(
Red Diffuse
) RED
B1702RS
B1701RS
655nm
100
1.7V
5000ucd
GaPGaAIAs(Clear Lens) RED
B1701S
695nm
100
1.7V
5000ucd
GaAsP/GaP YELLOW
B1702Y
635nm
100
2.1V
2000ucd
SiC BLUE
B1702SF
B1701C (CLEAR LENS)
600nm
100
3.6V
2000ucd
GaP GREEN
B1702G
565nm
100
2.3V
2000ucd
GaAsP/GaP ORANGE
B1702O
555nm
100
2.0V
2000ucd
