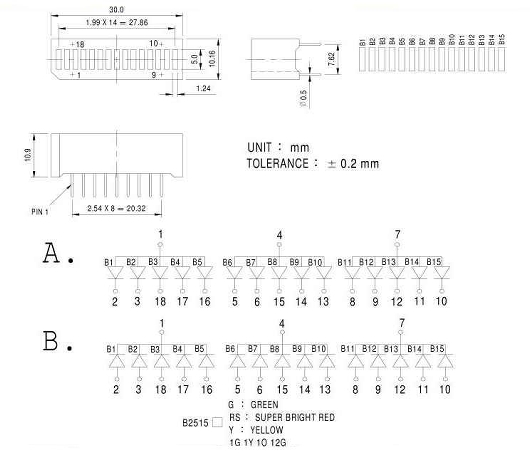

1.24 mm X 5mm LIGHT BAR 15 SEGMENT
MODEL NO.
PIN FUNCTION
WAVE
LENGTH
@VR=5V
@IF=20mA
MAX FORWARD
EMITING
COLOR
REMARK
IR MAX
VF
LUMINOUS
INTENSITY
CURRENT
PERCHIP @25° C
B2515ARS
A
650nm
100µA
1.8V
5mcd
30mA
RED
B2515AG
A
570nm
100µA
2.2V
4mcd
25mA
GREEN
B2515AY
A
590nm
100µA
2.2V
4mcd
25mA
YELLOW
B2515A1G1Y1O12G
A
100µA
2.2V
4mcd
25mA
MULTI COLOR
B2515RS
B
650nm
100µA
1.8V
5mcd
30mA
RED
B2515CG
B
570nm
100µA
2.2V
4mcd
25mA
GREEN
B2515CY
B
590nm
100µA
2.2V
4mcd
25mA
YELLOW
