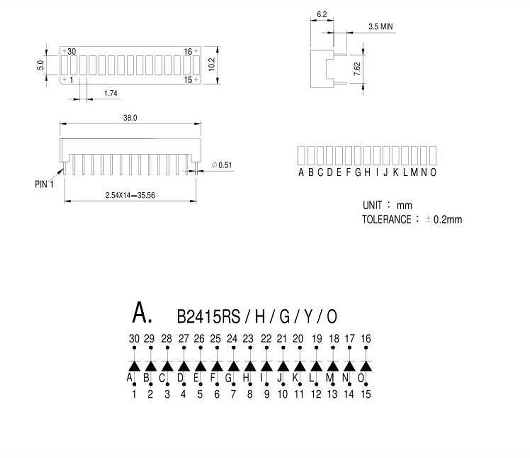

1.74mm X5.0mm LIGHT BAR 15 SEGMENT

PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING  COLOR
model no.
model no.
model no.
model no.
IF=20mA
VR=5V
IF=20mA
IF=10mA
GaAIAs  RED
B2415RS       655nm 100µA 1.7V 6570UCD

GaP RED

B2415H       695nm 100µA 2.3V 1000UCD
GaP GREEN
B2415G



    565nm 100µA 2.3V 2000UCD
GaAsP/GaP  YELLOW
B2415Y       600nm 100µA 2.1V 2000UCD
GaAsP/GaP ORANGE
B2415O

635nm

100µA 2.0V 2000UCD
