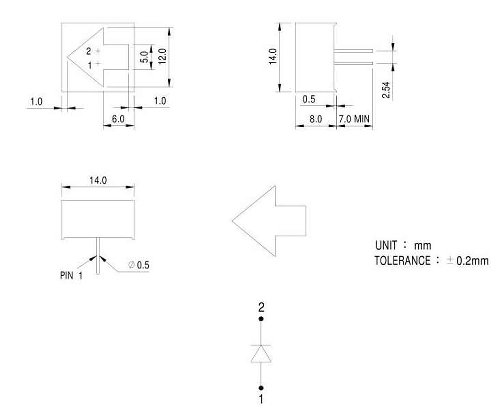

ARROW TYPE LIGHT BAR
Model No.
EMITTING COLOR
WAVE
LENGTH
IR MAX
@VR=5V
VF
(V)
LUMINOUS
INTENSITY
(nm)
@IF=20mA
@IF=20mA
@IF=20mA
B1401RS
GaAIAs SUPER BRIGHT RED
660nm
100µA
1.8v
5.0mcd
B1401O
GaAsP/GaP ORANGE
635nm
100µA
2.0v
2.5mcd
B1401G
GaP GREEN
565nm
100µA
2.3v
4.5mcd
B1401Y
GaAsP/GaP YELLOW
600nm
100µA
2.1v
2.5mcd
B1401SF
SiC
BLUE
465±5nm
100µA
3.6v
30mcd
0
0
0
0
0
0
JOINSCAN ELECTRONICS CO., LTD.
TEL:
886-2-2696-1188
FAX:
886-2-2696-1098
5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN
