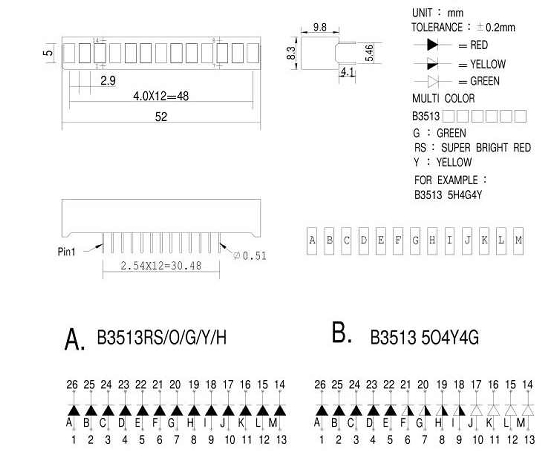

2.9mm X 5mm LIGHT BAR 13 SEGMENT

PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING  COLOR
model no.
model no.
model no.
model no.
IF=20mA
VR=5V
IF=20mA
IF=10mA
GaAIAs  RED
B3513RS       655nm 100µA 1.7V 6570ucd

GaP RED

B3513H       695nm 100µA 2.3V 1000ucd
GaP GREEN
B3513G

B3513504Y4G

    565nm 100µA 2.1V 2000ucd
GaAsP/GaP  YELLOW
B3513Y     600nm 100µA 3.1V 2000ucd
GaAsP/GaP ORANGE
B3513O

635nm

100µA 2.0V 2000ucd
