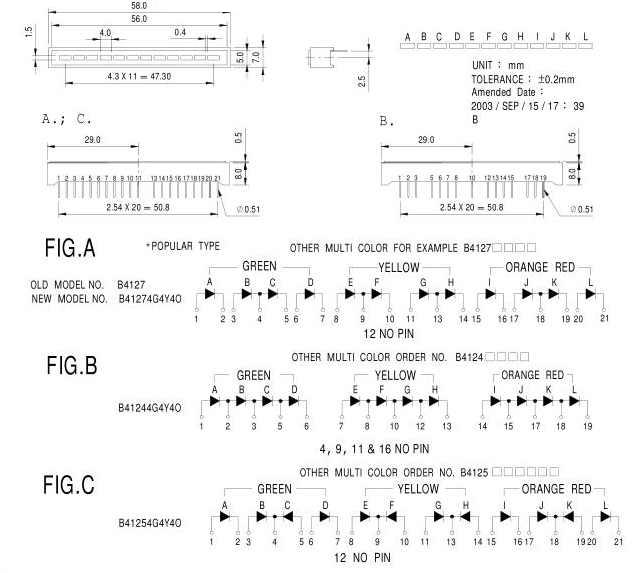

1.5mm X 4.0mm LIGHT BAR 12 SEGMENT
EMITTING COLOR
CHIP MATERIAL
WAVE
LENGTH
@VR=5V
@IF=20mA
MAX FORWARD
REMARK
IR MAX
VF
LUMINOUS
INTENSITY
CURRENT
PERCHIP @25° C
ORANGE RED
GaAsP/GaP
630mm
100µA
1.8V
4.0mcd
25mA
0
GREEN
GaP
570mm
100µA
2.2V
4.0mcd
25mA
0
YELLOW
GaP
590mm
100µA
2.2V
4.0mcd
25mA
0
BLUE
SiC/GaN
430mm
100µA
3.6V
10mcd
25mA
0
JOINSCAN ELECTRONICS CO., LTD.
TEL:
886-2-2696-1188
FAX:
886-2-2696-1098
5F NO. 98, SEC. 1, XINTAI 5TH ROAD, XIZHI DIST., NEW TAIPEI CITY 22102,TAIWAN
