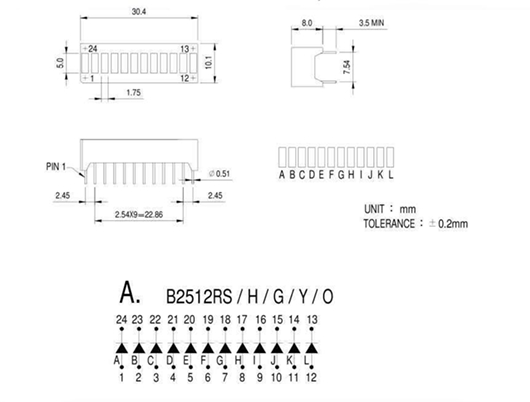

1.75mm X 5.0mm LIGHT BAR 12 SEGMENT
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
model no.
(nm)
VR=5V
IF=20mA
IF=10mA
GaAIAs RED
B3707RS
655nm
100µA
1.7V
6570ucd
GaP RED
B3707H
695nm
100µA
2.3V
1000ucd
GaP GREEN
B3707G
B37073G1Y30
B37073O2Y2G
B37073Y40
565nm
100µA
2.3V
2000ucd
GaAsP/GaP YELLOW
B3707Y
600nm
100µA
2.1V
2000ucd
GaAsP/GaP ORANGE
B3707O
635nm
100µA
2.0V
2000ucd
