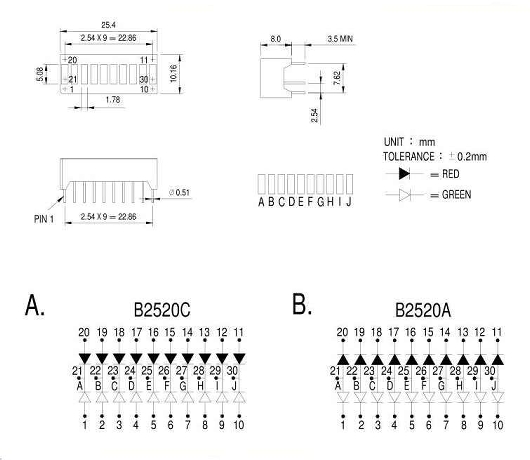

1.78mm x5.08mm LIGHT BAR 10 SEGMENT
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
model no.
IF=20mA
VR=5V
IF=20mA
IF=20mA
GaP YELLOW GREEN
B2520C
B2520A
565nm
100µA
2.3V
1000ucd
GaAsP/GaP RED
655nm
100µA
1.8V
5000ucd
