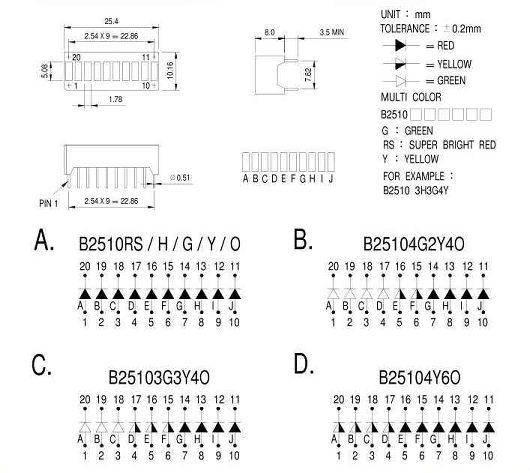

1.78mm X 5.08 mm LIGHT BAR 10 SEGMENT
PIN FUNCTION
A
B
C
D
WAVE
LENGTH
IR MAX
(uA)
VF
(V)
LUMINOUS
INTENSITY
EMITTING COLOR
model no.
model no.
model no.
model no.
(nm)
VR=5V
IF=20mA
IF=10mA
GaAIAs RED
B2510RS
655nm
100µA
1.7V
6570ucd
GaP RED
B2510H
695nm
100µA
2.3V
1000ucd
GaP GREEN
B2510G
B25104G2Y4O
B25103G3Y4O
565nm
100µA
2.3V
2000ucd
GaAsP/GaP YELLOW
B2510Y
B25104Y6O
600nm
100µA
2.1V
2000ucd
GaAsP/GaP ORANGE
B2510O
635nm
100µA
2.0V
2000ucd
