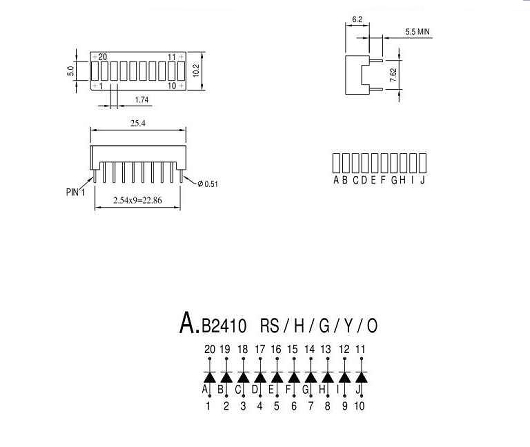

1.74mm X 5.0 mm LIGHT BAR 10 SEGMENT

PIN FUNCTION A B C D WAVE LENGTH IR　MAX (uA) VF (V) LUMINOUS INTENSITY EMITTING　 COLOR model no. model no. model no. model no. IF=20mA VR=5V IF=20mA IF=10mA GaAIAs 　RED B2410RS       655nm 100µA 1.7V 6570ucd GaP　RED B2410H       695nm 100µA 2.3V 1000ucd GaP　GREEN B2410G       565nm 100µA 2.3V 2000ucd GaAsP/GaP　　YELLOW B2410Y       600nm 100µA 2.1V 2000ucd GaAsP/GaP ORANGE B2410O       635nm 100µA 2.0V 2000ucd
